Happy model Mobula8 1-2S 85mm Micro FPV Racing Mobula 8 2 inch micro RC
Happy model Mobula8 1-2S 85mm Micro FPV Racing Mobula 8 2 inch micro RC
Prev
New Assembly DIY Four Axis Aircraft Mini HD Camera Drone Experiment Remote Control 162,84 zł
Next
A23 Drone 4k Dual Camera 5G GPS Mini Helicopter Quadcopter Toy Mini Drones 337,73 zł
589,17 zł785,55 zł
Availability: Out Of Stock
SPECIFICATIONSBrand Name: NONEFor Vehicle Type: AirplanesHigh-concerned chemical: NoneIs Batteries Included: YesIs Electric: No batteryIs it battery/power supply: NIs it charger/adapter: YMaterial: PlasticModel Number: Happymodel Mobula8Origin: Mainland ChinaRC Parts & Accs: Batteries - NiMHRecommend Age: 6-12YUse:...
Color:
Quntity:
Buy It Now
Category:
ZZTORAGE ZZTORAGE ZZTORAGE ZZTORAGE ZZTORAGE

SPECIFICATIONS

Brand Name: NONE

For Vehicle Type: Airplanes

High-concerned chemical: None

Is Batteries Included: Yes

Is Electric: No battery

Is it battery/power supply: N

Is it charger/adapter: Y

Material: Plastic

Model Number: Happymodel Mobula8

Origin: Mainland China

RC Parts & Accs: Batteries - NiMH

Recommend Age: 6-12Y

Use: Vehicles & Remote Control Toys


Specifications:Brand Name: Happymodel

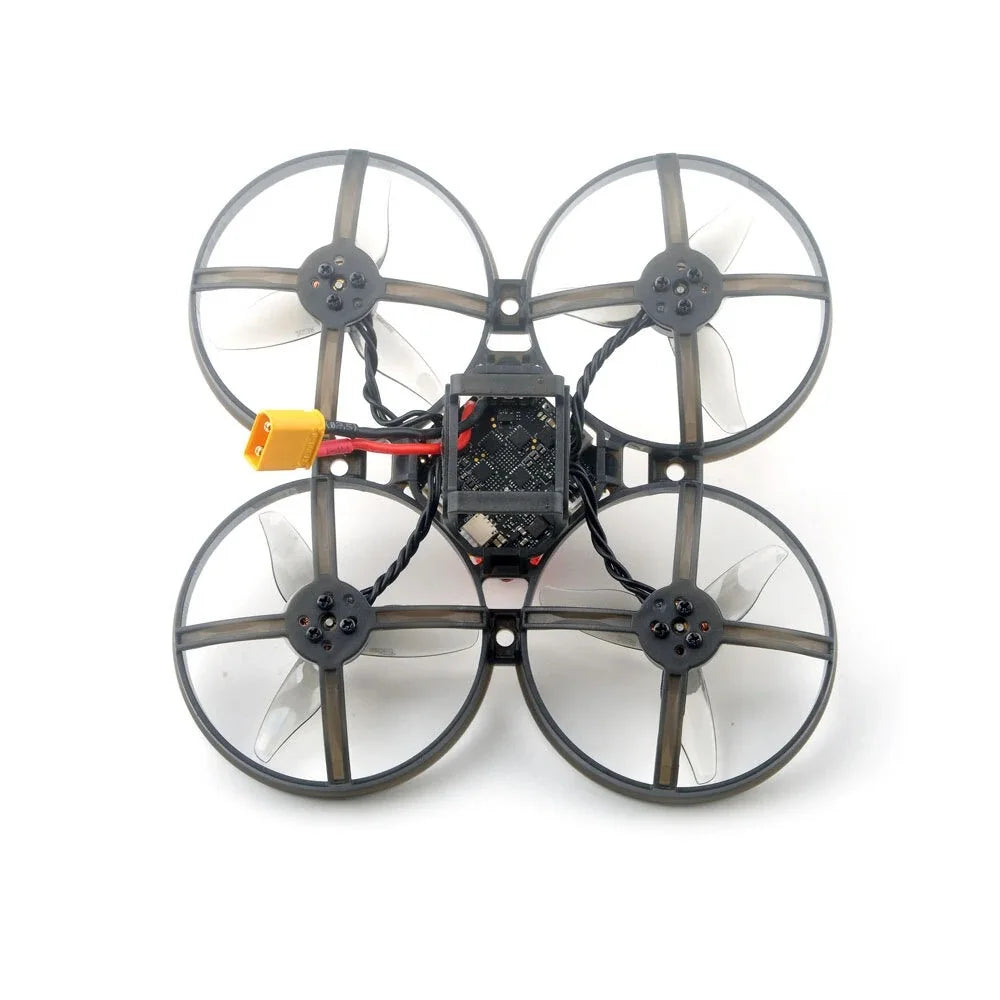

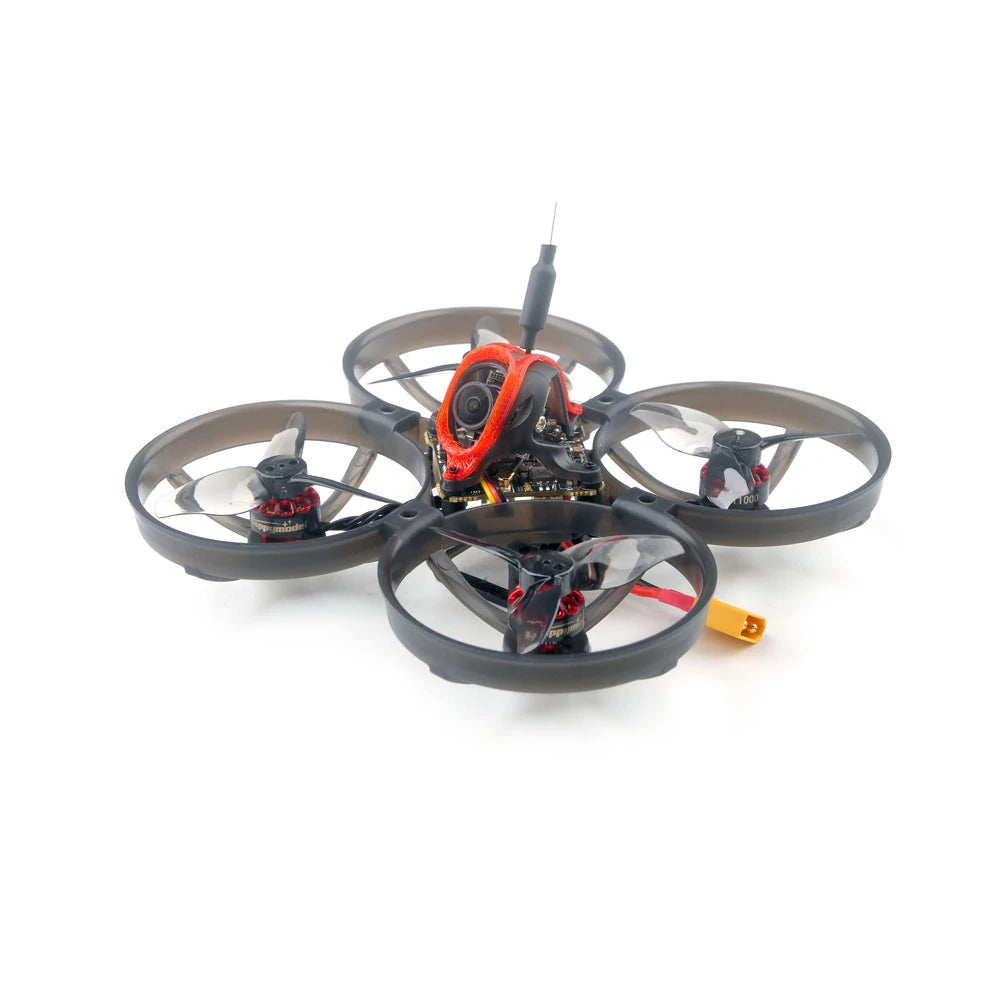

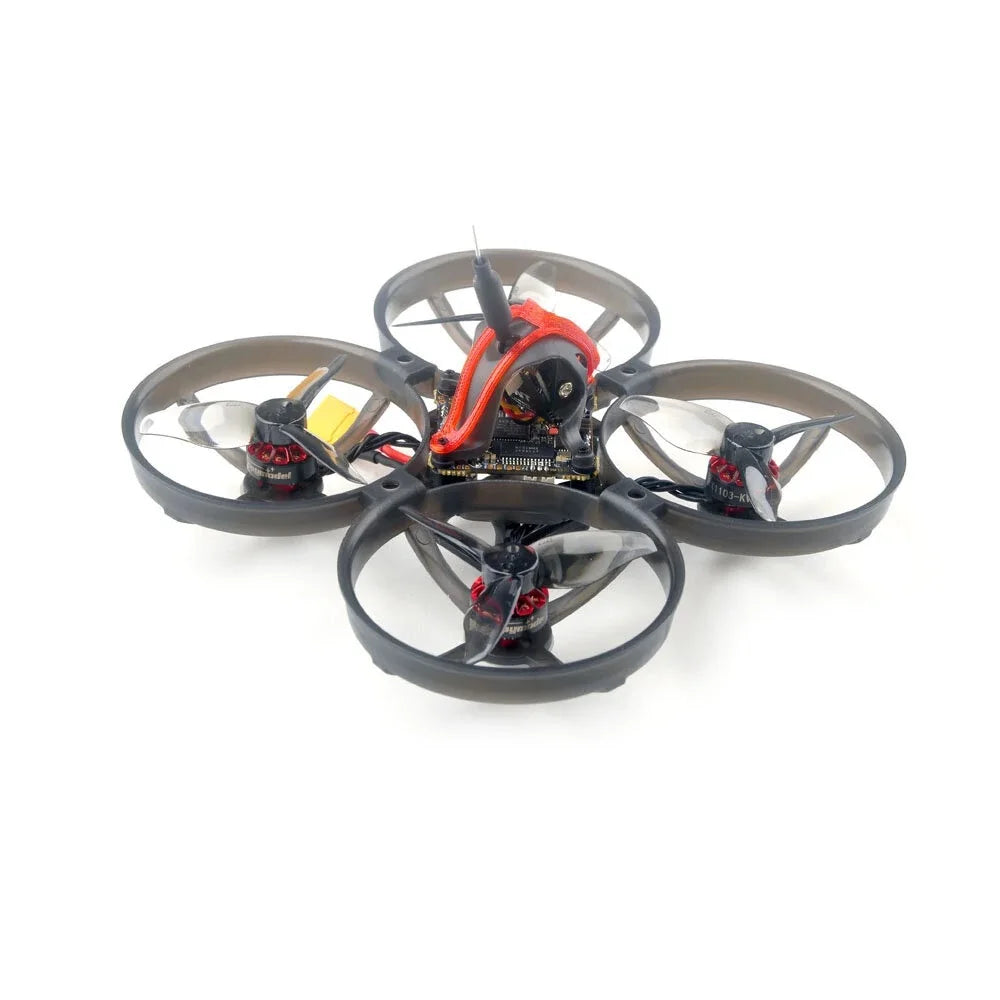

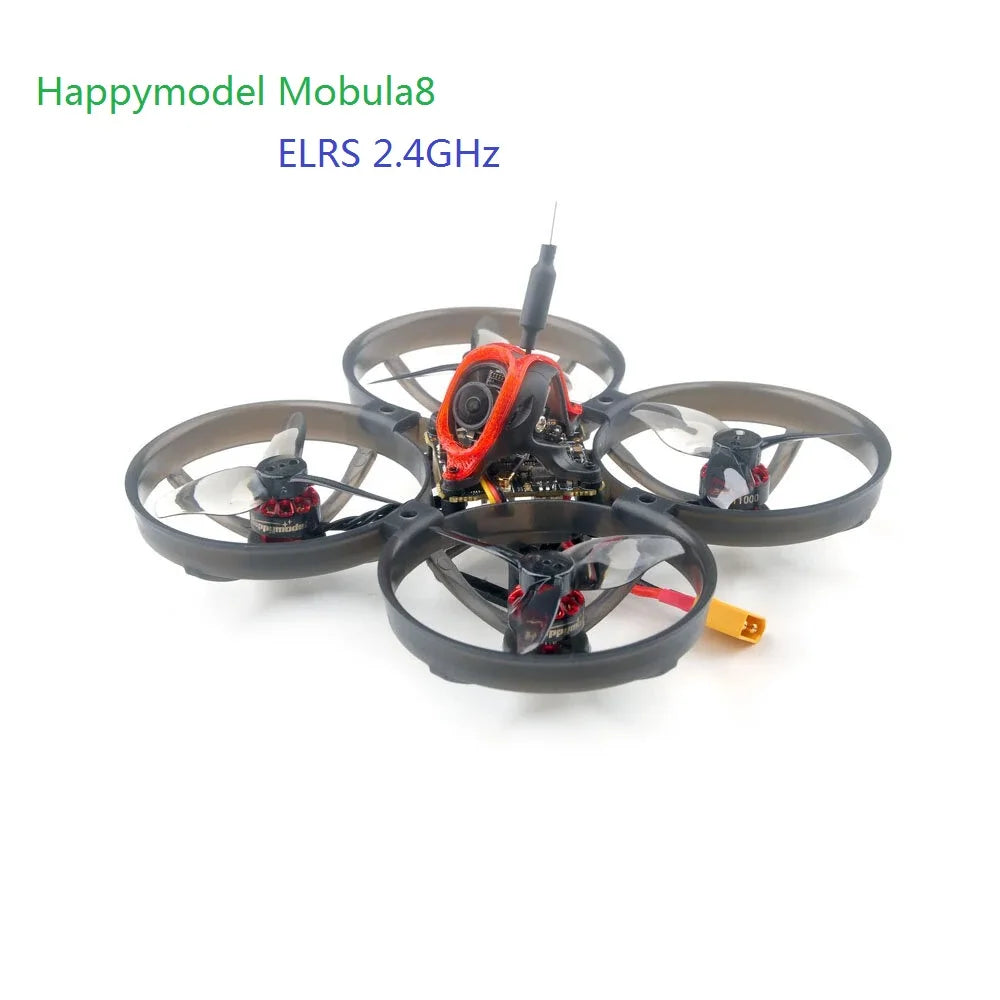

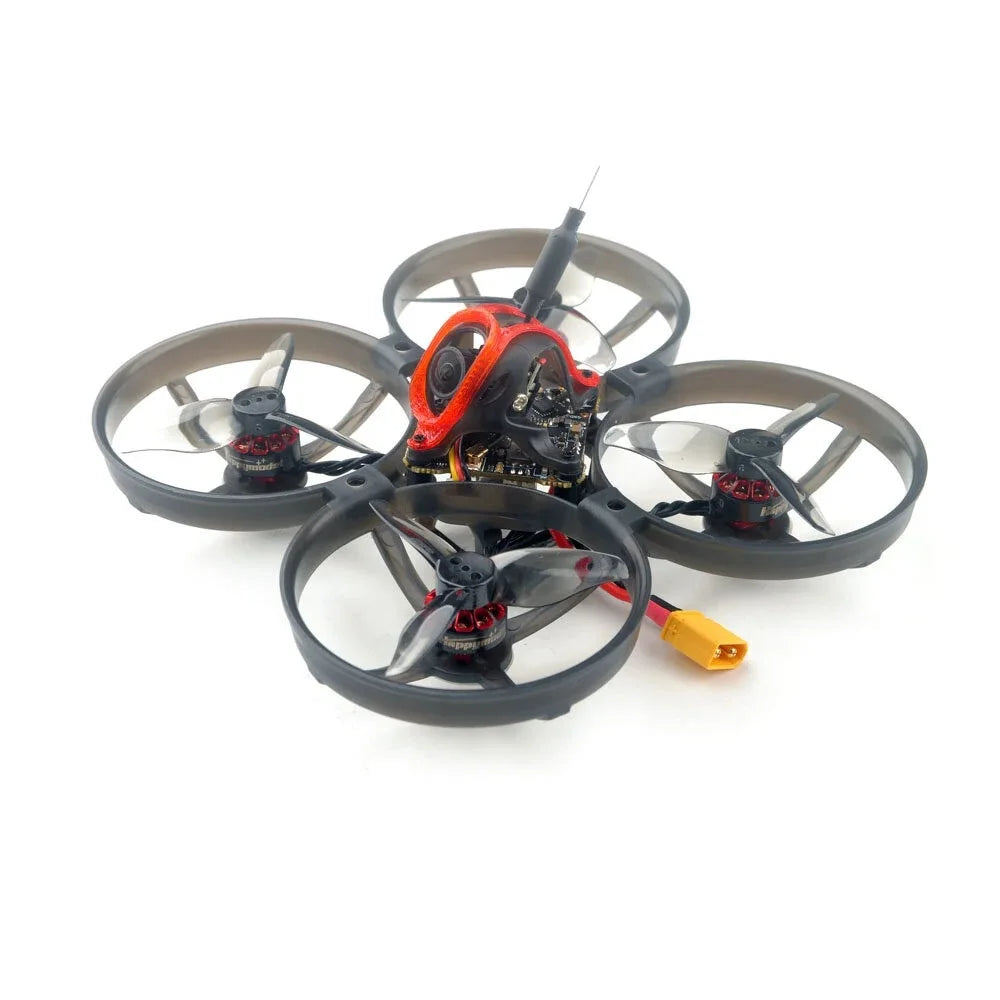

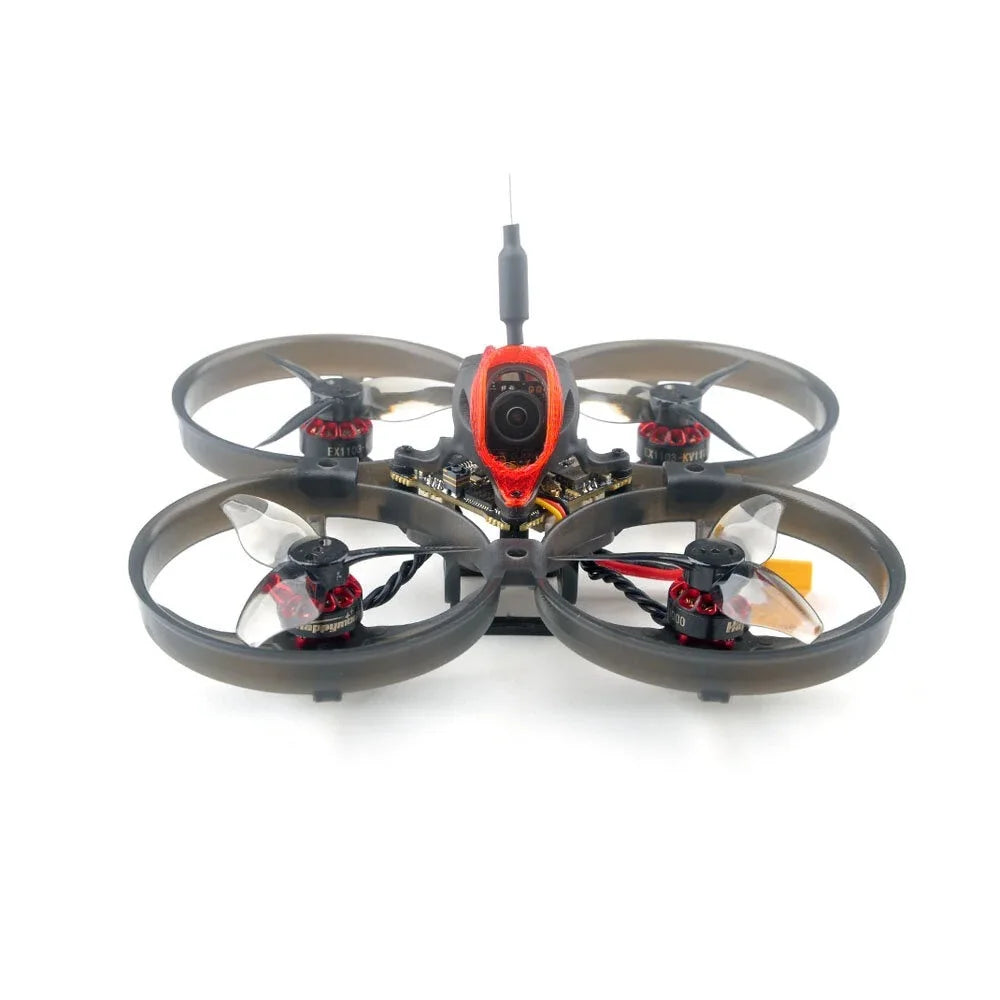

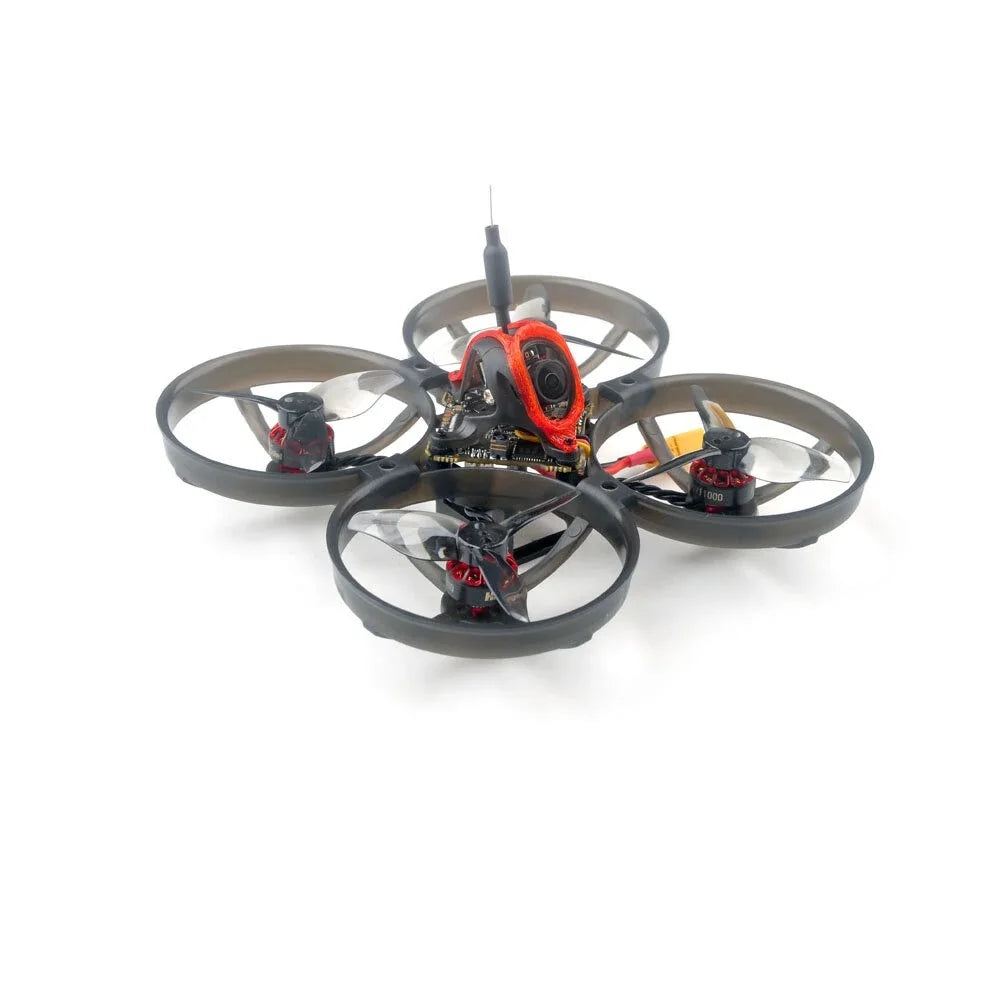

Item Name: Mobula8 1-2S 85mm Micro FPV whoop drone
Wheelbase: 85mm
Size: 120mm*120mm*50mm

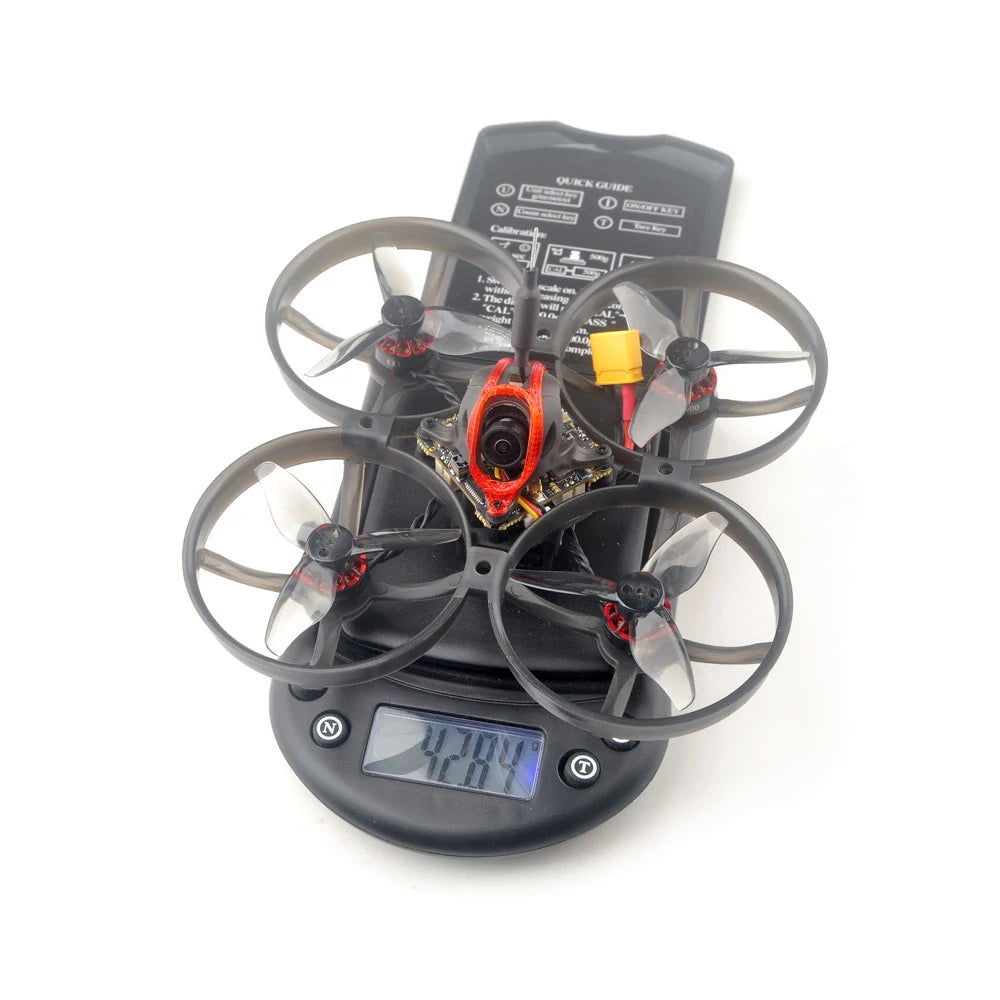

Weight: 43g
Receiver option:
2.4G ELRS SPI(Support ELRS v2.0, provide firmware could compatible with elrs v3.0)
SPI Frsky D8/D16  not compatible with EMAX E6 radio
SPI Flysky AFHDS2A
PNP (without onboard receiver)
TBS version(with external TBS CRSF NANO RX)


EX1103 KV11000 brushless motor

Mode: EX1103 KV11000
Configu-ration:9N12P
Stator Diamter:11mm
Stator Length:3mm
Shaft Diameter:Φ1.5mm
Motor Dimension(Dia.*Len):Φ13.5mm*15.5mm
Weight(g):3.8g
No.of Cells(Lipo):1-2S

Gemfan Hurricane 2023 tri-blade propellers(4cw+4ccw)

Weight:0.88g
Material: PC
Pitch:2.3inch
Props Dia:52.17mm
Center Thickness:5mm
Center Hole Dia:1.5mm

X12 5-IN-1 AIO flight controller

X12 ELRS V2.1 flight controller built-in ELRS 2.4G receiver Target: CRAZYBEEF4SX1280
X12 Frsky V2.1 flight controller built-in SPI Frsky 2.4G receiver Target: CRAZYBEEF4FR
X12 Flysky V1.0 flight controller built-in SPI Flysky 2.4G receiver Target: CRAZYBEEF4FS
X12 PNP V1.1 flight controller without onboard receiver Target: CRAZYBEEF4DX
MCU:STM32F411CEU6 (100MHZ, 512K FLASH)
Sensor: ICM20689 or ICM42688P(SPI connection)
Mount hole size: 25.5mm*25.5mm
Power supply: 1-2S battery input (DC 2.9V-8.7V)
Built-in 12A(each) Blheli_S 4in1 ESC
Built-in Betaflight OSD(SPI Control)
Built-in 5.8G OpenVTX 0mw~400mw
Built-in ExpressLRS 2.4G,Frsky D8/D16,Flysky AFHDS 2A
Built-in voltage detection
Built-in current sensor

Onboard 4in1 ESC

Power supply: 1-2S LiPo/LiPo HV
Current: 12A continuous peak 15A (3 seconds)
Support BLHeliSuite programmable
Firmware target: Z_H_30

Default protocol: DSHOT300
Support Bluejay firmware

Onboard SPI ExpressLRS 2.4GHz Receiver

Packet Rate option: 50Hz/150Hz/250Hz/500Hz
ExpressLRS Firmware version: V2.0
RF Frequency: 2.4GHz
Antenna : SMD antenna
Telemetry output Power: <12dBm
Receiver protocol:  SPI ExpressLRS
Compatible with ExpressLRS V2.0 TX Module
Couldn’t flash separately ExpressLRS firmware
Could flash FC firmware to support ExpressLRS v3.0 TX module

Onboard SPI Frsky D8/D16 receiver Versio

SPI BUS receiver Frsky D8/D16 compatible
Compatible Non EU transmitter D8/D16 modelChannels: 8ch/16ch
No ground interference ( Transmitter and receiver 1 m from the ground): 200meterFailsafe support

Onboard SPI Flysky receiver Version

SPI BUS receiver
Protocol: AFHDS-2A
Channels: 14ch(AFHDS-2A)
No ground interference ( Transmitter and receiver 1 m from the ground): 200meter
Failsafe support

PNP Version
(without onboard receiver)

Full UART1 for external Receiver
Support CRSF/GHOST/SBUS/IBUS/DSMX protocol
IR1 pad(invert RX1) used for SBUS input

External TBS CRSF Nano receiver version

Original TBS Receiver  ,CRSF Protocol , Official TBS transmitter compatible

Onboard 5.8g OPENVTX

Firmware version: OPENVTX
Smartaudio v2.1
PIT Mode support
RCE Mode support
Channels:48ch
Transmitting Power: 0/RCE/25mw/100mw/400mw
Power supply: DC 5V
Current (5v): <650ma (400mw)

Caddx ANT 1200tvl camera

Image Sensor: 1/3″ CMOS Sensor
Horizontal Resolution: 1200 TVL
TV System: NTSC or PAL
IMAGE: 16:9 or 4:3
Synchronization: Internal
Electronic Shutter: PAL: 1/50~100,000; NTSC: 1/60~100,000
S/N Ratio : >52dB (AGC OFF)
Video Output: CVBS

Lens: 1.8mm
Min. Illumination: 0.001Lux@F1.2
Auto Gain Control: YES
WDR: Global WDR
DNR: 3D DNR
Dimensions: 14*14mm(with bracket to 19*19mm)
Wide Power Input: DC 3.7-18V
Weight: 2g (N.W.)


Package Included:

1* Happymodel Mobula8 RC Drone
